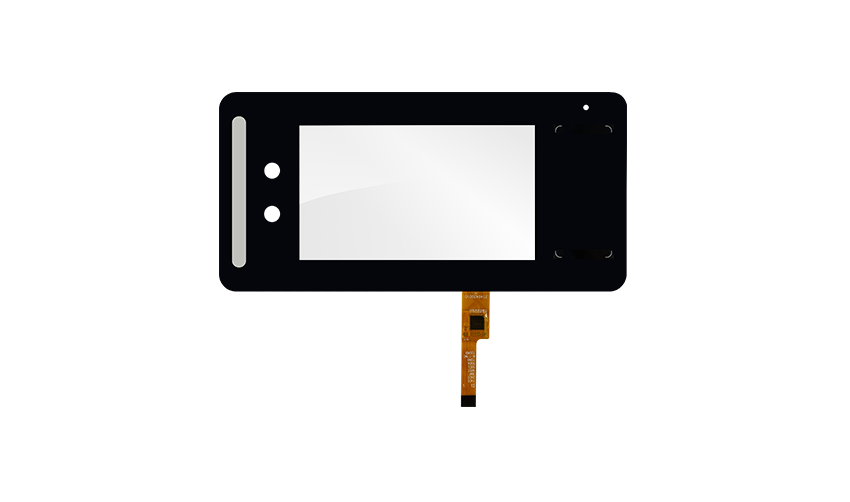

4.3-inch capacitive touch screen

dimension:4.3 Inch

channels:27

external dimension/mm:111.29(L)*72.9(W)*0.95(H)

structure:COF (Self-contained IC)

structuretype:G/F

touch points:ingle Point + Gesture

View Details

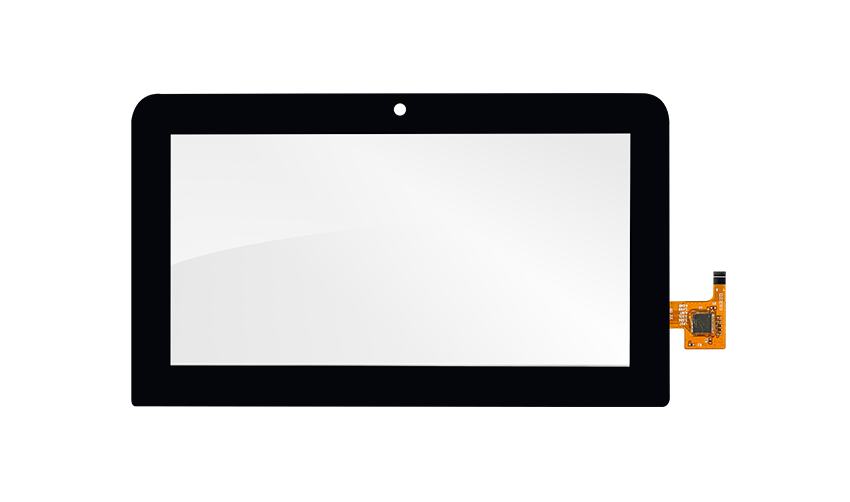

5.45 Inch Capacitive Touch Panel

dimension:5.45 Inch

channels:36

external dimension/mm:145.48(L)*84.58(W)*0.95(H)

structure:COF（Self Capacitive IC ）

structuretype:G/F

touch points:Single Point + Gesture

View Details

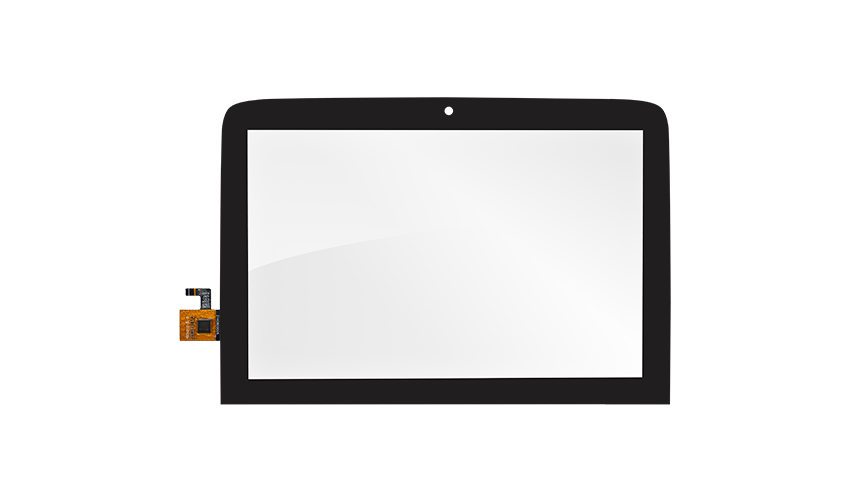

6.95 Inch Capacitive Touch Panel

dimension:6.95 Inch

channels:TX26*RX14

external dimension/mm:177.51(L)*113.52(W)*1.3(H)

structure:COF（Self Capacitive IC ）

structuretype:G/Ｇ

touch points:５ Points

View Details

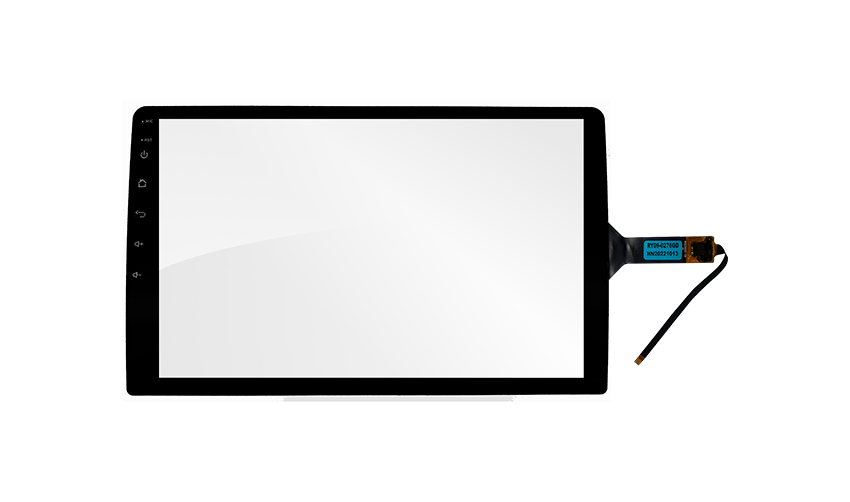

8.0 Inch Capacitive Touch Panel

dimension:8.0 Inch

channels:TX16*RX26

external dimension/mm:197.02(L)*133.95W)*1.85(H)

structure:COF（Self Capacitive IC ）

structuretype:G/G

touch points:５ Points

View Details

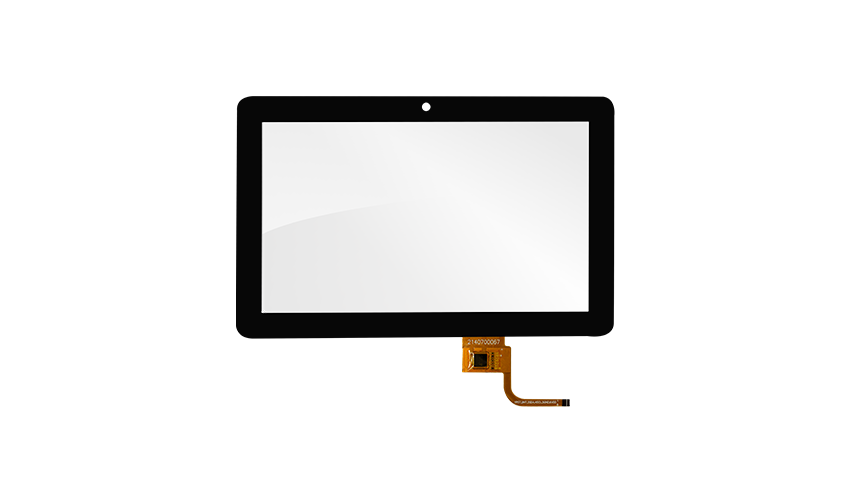

9.35 Inch Capacitive Touch Panel

dimension:9.35 Inch

channels:TX26*RX14

external dimension/mm:228.86(L)*130.38(W)*3.1(H)

structure:COF（Self Capacitive IC ）

structuretype:G/G

touch points:５ Points

View Details

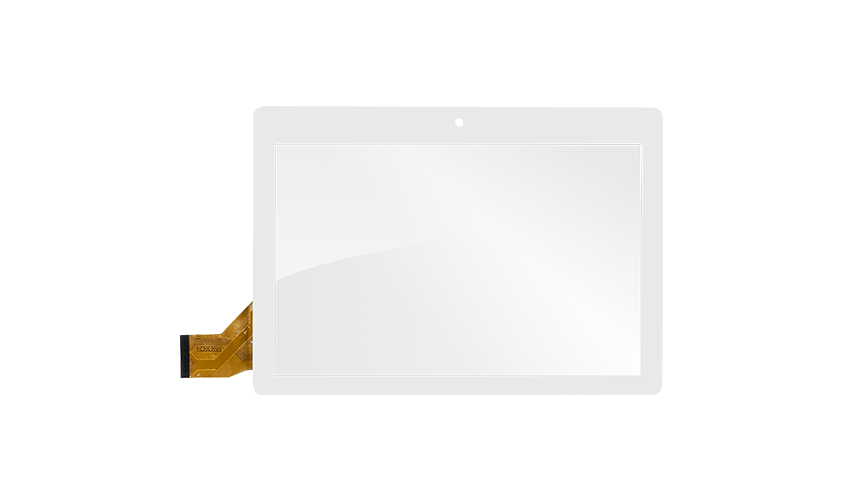

10.1 Inch Capacitive Touch Panel

dimension:10.1 Inch

channels:TX28*RX16

external dimension/mm:242.98(L)*159.76(W)*1.05(H)

structure:COB

structuretype:G/F

touch points:５ Points

View Details
